FreeGlide In Line Powder Sampler

Availability: In Stock

The FreeGlide is a patented in-line powder sampler from Sampling Systems. The FreeGlide is designed to take samples as the powder falls, under gravity, down a pipe. In between taking samples the full bore of the pipe is available for powder flow.

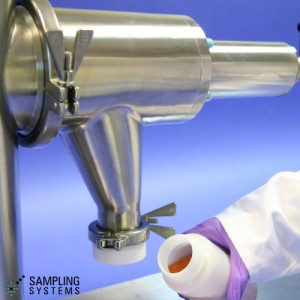

The FreeGlide works be extending a sample collection cup into the powder flow. After sampling the cup is returned to the FreeGlide and is inverted, this drops the sample into a bag or bottle.

The FreeGlide was designed for use in the pharmaceutical and food industries. All of the product contact parts are either 316L stainless steel or FDA acceptable polymers.

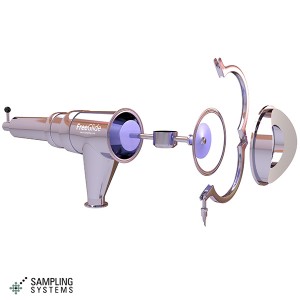

The heart of the system is the special, patented, flexible Diaphragm. The Diaphragm separates the dusty product area with the mechanical area at the rear of the sampler. The Diaphragm ensures that the device will not stick during use.

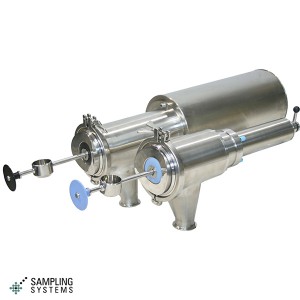

The FreeGlide is available with either manual or automated pneumatic operation and in a range of different sizes.

  • Ideal for pharmaceutical and food applications
  • The sample is collected in a cup and so is not physically altered by the sampling process
  • The full bore of the pipe is available for powder flow in between taking samples
  • The FreeGlide is easy to strip down for cleaning between batches.
  • Over 700 FreeGlide samplers are in use in food and pharmaceutical factories around the world



Manually Operated FreeGlide®
  • 50ml sample cup size
  • 316 stainless steel product contact parts
  • 304 stainless steel non-product contact parts
  • Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
  • Front Boss for welding to customer’s pipe (welding & installation by others)
  • Internal finish 0.5µm Ra
  • External finish 1.0 µm Ra
  • Non ATEX
  • Maximum product temperature 60°C (140°F)
Pneumatic Actuated FreeGlide®
  • 50ml sample cup size
  • 316 stainless steel product contact parts
  • 304 stainless steel non-product contact parts
  • Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
  • Front Boss for welding to customer’s pipe (welding & installation by others)
  • Internal finish 0.5µm Ra
  • External finish 1.0 µm Ra
  • Pneumatic Actuator requires air at 6barg
  • Four limit switches (24v DC) to detect cup position
  • Controls to be supplied by others
  • Non ATEX
  • Maximum product temperature 60°C (140°F)

Options

  • Sample collection systems
  • Cleaning systems



Please Contact us for a full detailed quote and wide range of options



General Arrangement Sketches
Manual FreeGlides



General Arrangement Sketches
Pneumatic Actuated FreeGlides

FG-1000M FG-1000A
FG-1500M FG-1500A
FG-2000M FG-2000A
FG-3000M FG-3000A
Part No. Description
FG-1000M Manual Operation - for use with Down Pipes larger than 100mm diameter
FG-1500M Manual Operation - for use with Down Pipes larger than 150mm diameter
FG-2000M Manual Operation - for use with Down Pipes larger than 200mm diameter
FG-3000M Manual Operation - for use with Down Pipes larger than 230mm diameter
FG-1000A Actuated Operation - for use with Down Pipes larger than 100mm diameter
FG-1500A Actuated Operation - for use with Down Pipes larger than 150mm diameter
FG-2000A Actuated Operation - for use with Down Pipes larger than 200mm diameter
FG-3000A Actuated Operation - for use with Down Pipes larger than 230mm diameter
