U-D Master DOUBLE Style
U-D Master DOUBLE Style U-D Master DOUBLE Style U-D Master DOUBLE Style

U-D Master DOUBLE Style

Availability: In Stock

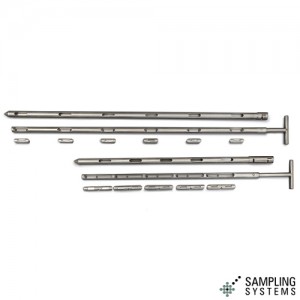

The double version of the U-D Master takes 2 samples from every point. It is designed to take multilevel unit dose samples from free-flowing powders. The interchangeable cells give you ultimate flexibility. Different volume cells from 0.1ml to 4ml are available in 0.1ml increments.

Sampling Systems offers the largest choice of unit dose samplers on the market. Our range has been designed with GMP requirements in mind. These are widely used in research and development, production and process validation.


This sampling tool is available in different lengths. Blank cells can be also used to close off cells so you only need to take samples where you want.


Different versions of the sampler are available:


A. SINGLE Style U-D Master

  • One sample per sampling point


B. DOUBLE Style U-D Master

  • Two samples per sampling point


C. TRIPLE Style U-D Master

  • Three samples per sampling point


EASY TO USE

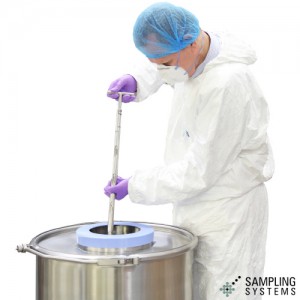

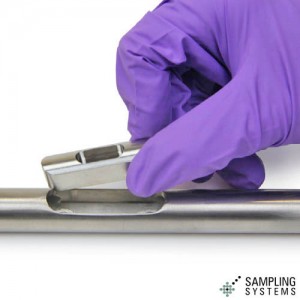

Insert the powder sampler. Turn the handle to take the sample. Remove the sampler. After removing the outer tube, the cells can be removed individually.


QUALITY - Made entirely from polished 316L stainless steel.  They can be taken apart and thoroughly cleaned


FLEXIBILITY - Various sizes available from stock


FAST DELIVERY - Over 1 million stock items.


BUY WITH CONFIDENCE - Over 10,000 happy customers worldwide


Some samplers are made to order. Please allow 1 - 2 weeks for delivery. If its urgent, please contact us and we can frequently improve the delivery time

  Specification Sheets   Certificate
1230A-300 UD Master Single Style 300mm - specification sheet -- (coming soon) 1230_UD_Master_Certificate_of_Conformity
1230A-600 UD Master Single Style 600mm - specification sheet -- (coming soon)
1230A-900 UD Master Single Style 900mm - specification sheet
1230A-1200 UD Master Single Style 1200mm - specification sheet
1230A-1500 UD Master Single Style 1500mm - specification sheet -- (coming soon)
1230A-1800 UD Master Single Style 1800mm - specification sheet -- (coming soon)

1230B-600 UD Master Double Style 600mm - specification sheet -- (coming soon)
1230B-900 UD Master Double Style 900mm - specification sheet -- (coming soon)
1230B-1200 UD Master Double Style 1200mm - specification sheet -- (coming soon)
1230B-1500 UD Master Double Style 1500mm - specification sheet -- (coming soon)
1230B-1800 UD Master Double Style 1800mm - specification sheet -- (coming soon)

1230C-900 UD Master Triple Style 900mm - specification sheet -- (coming soon)
1230C-1200 UD Master Triple Style 1200mm - specification sheet -- (coming soon)
1230C-1500 UD Master Triple Style 1500mm - specification sheet -- (coming soon)
1230C-1800 UD Master Triple Style 1800mm - specification sheet -- (coming soon)
Part No. Description No. of Sampling Points No. Of Inserts Required Material
1230B-600 U-D Master - double style - 600mm 5 10 316L ss
1230B-900 U-D Master - double style - 900mm 7 14 316L ss
1230B-1200 U-D Master - double style - 1200mm 8 16 316L ss
1230B-1500 U-D Master - double style - 1500mm 10 20 316L ss
1230B-1800 U-D Master - double style - 1800mm 12 24 316L ss
1230T-00 Insert for U-D Master - blank - - 316L ss
1230T-01 Insert for U-D Master - 0.1ml - - 316L ss
1230T-02 Insert for U-D Master - 0.2ml - - 316L ss
1230T-03 Insert for U-D Master - 0.3ml - - 316L ss
1230T-04 Insert for U-D Master - 0.4ml - - 316L ss
1230T-05 Insert for U-D Master - 0.5ml - - 316L ss
1230T-06 Insert for U-D Master - 0.6ml - - 316L ss
1230T-07 Insert for U-D Master - 0.7ml - - 316L ss
1230T-08 Insert for U-D Master - 0.8ml - - 316L ss
1230T-09 Insert for U-D Master - 0.9ml - - 316L ss
1230T-10 Insert for U-D Master - 1.0ml - - 316L ss
1230T-11 Insert for U-D Master - 1.1ml - - 316L ss
1230T-12 Insert for U-D Master - 1.2ml - - 316L ss
1230T-13 Insert for U-D Master - 1.3ml - - 316L ss
1230T-14 Insert for U-D Master - 1.4ml - - 316L ss
1230T-15 Insert for U-D Master - 1.5ml - - 316L ss
1230T-16 Insert for U-D Master - 1.6ml - - 316L ss
1230T-17 Insert for U-D Master - 1.7ml - - 316L ss
1230T-18 Insert for U-D Master - 1.8ml - - 316L ss
1230T-19 Insert for U-D Master - 1.9ml - - 316L ss
1230T-20 Insert for U-D Master - 2.0ml - - 316L ss
1230T-21 Insert for U-D Master - 2.1ml - - 316L ss
1230T-22 Insert for U-D Master - 2.2ml - - 316L ss
1230T-23 Insert for U-D Master - 2.3ml - - 316L ss
1230T-24 Insert for U-D Master - 2.4ml - - 316L ss
1230T-25 Insert for U-D Master - 2.5ml - - 316L ss
1230T-26 Insert for U-D Master - 2.6ml - - 316L ss
1230T-27 Insert for U-D Master - 2.7ml - - 316L ss
1230T-28 Insert for U-D Master - 2.8ml - - 316L ss
1230T-29 Insert for U-D Master - 2.9ml - - 316L ss
1230T-30 Insert for U-D Master - 3.0ml - - 316L ss
1230T-31 Insert for U-D Master - 3.1ml - - 316L ss
1230T-32 Insert for U-D Master - 3.2ml - - 316L ss
1230T-33 Insert for U-D Master - 3.3ml - - 316L ss
1230T-34 Insert for U-D Master - 3.4ml - - 316L ss
1230T-35 Insert for U-D Master - 3.5ml - - 316L ss
1230T-36 Insert for U-D Master - 3.6ml - - 316L ss
1230T-37 Insert for U-D Master - 3.7ml - - 316L ss
1230T-38 Insert for U-D Master - 3.8ml - - 316L ss
1230T-39 Insert for U-D Master - 3.9ml - - 316L ss
1230T-40 Insert for U-D Master - 4.0ml - - 316L ss
