U-D Master
Unit Dose Sampling to meet FDA Guidelines
The patented U-D Master is designed for multilevel low volume sampling in the pharmaceutical industry. It is ideal for use with free flowing powders. By simply changing the sample inserts (cells) different volumes can be sampled.
The UD Master is used in pharmaceutical companies around the world for unit dose sampling of powders and granules.
- Manufactured from 316 stainless steel
- Satin polish (Ra< 1microns)
- Take multiple samples from the same point (DOUBLE and TRIPLE styles)
- Range of sampler lengths

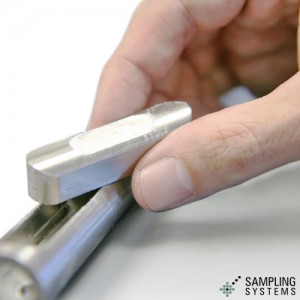

- Change the sample volume by changing the insert
- Special finishes and materials of construction available on request

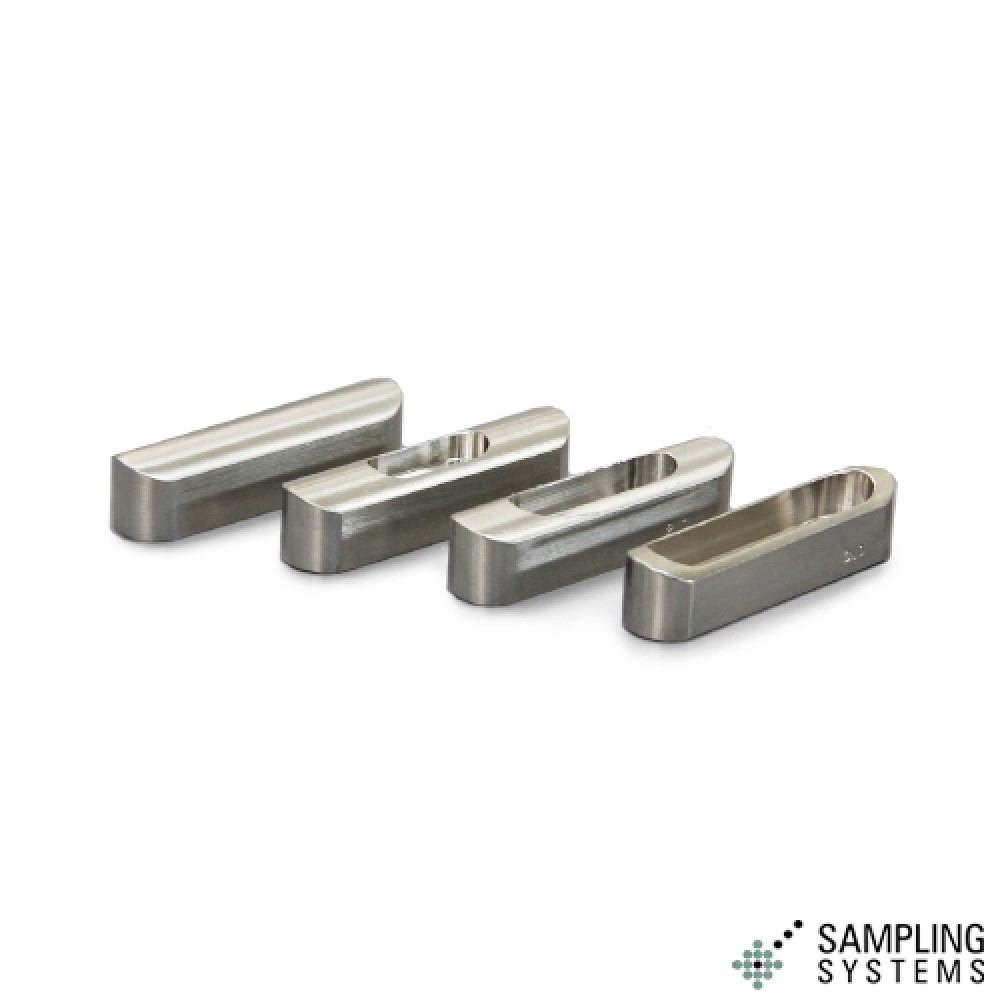

| Part No. | Description | Volume ml | No. of Sampling Points | No. Of Inserts Required | Material |
|---|---|---|---|---|---|
| 1230T-00 | Insert for U-D Master - blank | 0.0 | - | - | 316L ss |
| 1230T-01 | Insert for U-D Master - 0.1ml | 0.1 | - | - | 316L ss |
| 1230T-02 | Insert for U-D Master - 0.2ml | 0.2 | - | - | 316L ss |
| 1230T-03 | Insert for U-D Master - 0.3ml | 0.3 | - | - | 316L ss |
| 1230T-04 | Insert for U-D Master - 0.4ml | 0.4 | - | - | 316L ss |
| 1230T-05 | Insert for U-D Master - 0.5ml | 0.5 | - | - | 316L ss |
| 1230T-06 | Insert for U-D Master - 0.6ml | 0.6 | - | - | 316L ss |
| 1230T-07 | Insert for U-D Master - 0.7ml | 0.7 | - | - | 316L ss |
| 1230T-08 | Insert for U-D Master - 0.8ml | 0.8 | - | - | 316L ss |
| 1230T-09 | Insert for U-D Master - 0.9ml | 0.9 | - | - | 316L ss |
| 1230T-10 | Insert for U-D Master - 1.0ml | - | - | 316L ss | |
| 1230T-11 | Insert for U-D Master - 1.1ml | 1.1 | - | - | 316L ss |
| 1230T-12 | Insert for U-D Master - 1.2ml | 1.2 | - | - | 316L ss |
| 1230T-13 | Insert for U-D Master - 1.3ml | 1.3 | - | - | 316L ss |
| 1230T-14 | Insert for U-D Master - 1.4ml | 1.4 | - | - | 316L ss |
| 1230T-15 | Insert for U-D Master - 1.5ml | 1.5 | - | - | 316L ss |
| 1230T-16 | Insert for U-D Master - 1.6ml | 1.6 | - | - | 316L ss |
| 1230T-17 | Insert for U-D Master - 1.7ml | 1.7 | - | - | 316L ss |
| 1230T-18 | Insert for U-D Master - 1.8ml | 1.8 | - | - | 316L ss |
| 1230T-19 | Insert for U-D Master - 1.9ml | 1.9 | - | - | 316L ss |
| 1230T-20 | Insert for U-D Master - 2.0ml | - | - | 316L ss | |
| 1230T-21 | Insert for U-D Master - 2.1ml | 2.1 | - | - | 316L ss |
| 1230T-22 | Insert for U-D Master - 2.2ml | 2.2 | - | - | 316L ss |
| 1230T-23 | Insert for U-D Master - 2.3ml | 2.3 | - | - | 316L ss |
| 1230T-24 | Insert for U-D Master - 2.4ml | 2.4 | - | - | 316L ss |
| 1230T-25 | Insert for U-D Master - 2.5ml | 2.5 | - | - | 316L ss |
| 1230T-26 | Insert for U-D Master - 2.6ml | 2.6 | - | - | 316L ss |
| 1230T-27 | Insert for U-D Master - 2.7ml | 2.7 | - | - | 316L ss |
| 1230T-28 | Insert for U-D Master - 2.8ml | 2.8 | - | - | 316L ss |
| 1230T-29 | Insert for U-D Master - 2.9ml | 2.9 | - | - | 316L ss |
| 1230T-30 | Insert for U-D Master - 3.0ml | - | - | 316L ss | |
| 1230T-31 | Insert for U-D Master - 3.1ml | 3.1 | - | - | 316L ss |
| 1230T-32 | Insert for U-D Master - 3.2ml | 3.2 | - | - | 316L ss |
| 1230T-33 | Insert for U-D Master - 3.3ml | 3.3 | - | - | 316L ss |
| 1230T-34 | Insert for U-D Master - 3.4ml | 3.4 | - | - | 316L ss |
| 1230T-35 | Insert for U-D Master - 3.5ml | 3.5 | - | - | 316L ss |
| 1230T-36 | Insert for U-D Master - 3.6ml | 3.6 | - | - | 316L ss |
| 1230T-37 | Insert for U-D Master - 3.7ml | 3.7 | - | - | 316L ss |
| 1230T-38 | Insert for U-D Master - 3.8ml | 3.8 | - | - | 316L ss |
| 1230T-39 | Insert for U-D Master - 3.9ml | 3.9 | - | - | 316L ss |
| 1230T-40 | Insert for U-D Master - 4.0ml | - | - | 316L ss | |
| 1230A-300 | U-D Master - single style - 300mm | 5 | 5 | 316L ss | |
| 1230A-600 | U-D Master - single style - 600mm | 10 | 10 | 316L ss | |
| 1230A-900 | U-D Master - single style - 900mm | 6 | 6 | 316L ss | |
| 1230A-1200 | U-D Master - single style - 1200mm | 8 | 8 | 316L ss | |
| 1230A-1500 | U-D Master - single style - 1500mm | 10 | 10 | 316L ss | |
| 1230A-1800 | U-D Master - single style - 1800mm | 12 | 12 | 316L ss | |
| 1230B-600 | U-D Master - double style - 600mm | 5 | 10 | 316L ss | |
| 1230B-900 | U-D Master - double style - 900mm | 7 | 14 | 316L ss | |
| 1230B-1200 | U-D Master - double style - 1200mm | 8 | 16 | 316L ss | |
| 1230B-1500 | U-D Master - double style - 1500mm | 10 | 20 | 316L ss | |
| 1230B-1800 | U-D Master - double style - 1800mm | 12 | 24 | 316L ss | |
| 1230C-900 | U-D Master - triple style - 900mm | 5 | 15 | 316L ss | |
| 1230C-1200 | U-D Master - triple style - 1200mm | 7 | 21 | 316L ss | |
| 1230C-1500 | U-D Master - triple style - 1500mm | 8 | 24 | 316L ss | |
| 1230C-1800 | U-D Master - triple style - 1800mm | 10 | 30 | 316L ss |
