Slot Sampler

Slot Sampler


Multilevel Sampler gives a Single Composite Sample

The Slot Sampler is ideal for taking a large volume, cross sectional sample from a container. This all layer sampler has a robust all stainless steel construction and is suitable for sampling free flowing powders, granules and even slightly cohesive powders.

Type: Cross section (composite sample)

General: Suitable for taking large volume samples.

Operation:
1. Insert the sampler into the product
2. Turn the handle to open the slot - the product can now be collected in the central tube
3. Turn the handle to close the slot
4. Remove the sampler
5. Invert the sampler to discharge the sample

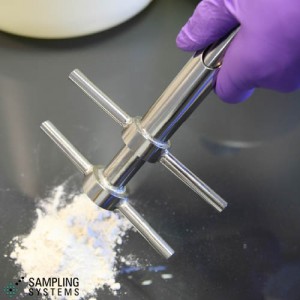

slot sampler 1: Emptying from standard sampler

2: Emptying from sampler with a bottle adapter

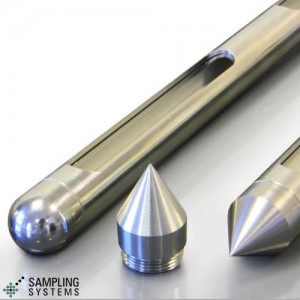

The standard Pointed Tip can be replaced with a Round Tip

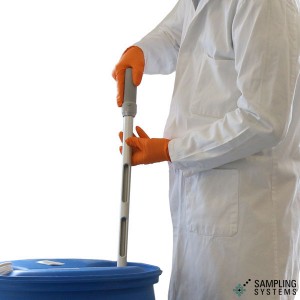

The Slot Sampler is ideal for taking multi-level samples

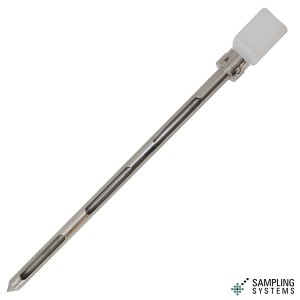

The Slot Sampler can be supplied with a bottle adapter
Slot Samplers are available in a range of sizes

Part No. Bottle Holder Sampler Length Outer Diameter Number of slots Maximum Sample Volume Material of Construction
1210A-300 No 300mm 25mm 3 45ml 316 stainless steel
1210A-600 No 600mm 25mm 3 110ml 316 stainless steel
1210A-1000 No 1000mm 25mm 4 190ml 316 stainless steel
1210A-1500 No 1500mm 25mm 5 300ml 316 stainless steel
1210A-2000 No 2000mm 25mm 5 370ml 316 stainless steel

1210B-600 Yes* 600mm 25mm 3 110ml 316 stainless steel
1210B-1000 Yes* 1000mm 25mm 4 190ml 316 stainless steel
1210B-1500 Yes* 1500mm 25mm 5 300ml 316 stainless steel

1210K-1000 No 1000mm 40mm 3 750ml 316 stainless steel
1210K-1500 No 1500mm 40mm 4 1000ml 316 stainless steel
1210K-2000 No 2000mm 40mm 4 1300ml 316 stainless steel

1210J-900 No 900mm 50mm 3 880ml Aluminium**
1210J-1500 No 1500mm 50mm 5 1700ml Aluminium**
1210J-2500 No 2500mm 50mm 7 2900ml Aluminium**

8165A-250 Sample collecting bottle - 250ml. HDPE
8165A-500 Sample collecting bottle - 500ml. HDPE
TIP-25R Round tip. (Sampler supplied with pointed tip) for use with 25mm diameter samplers only
TIP-40R Round tip. (Sampler supplied with pointed tip) for use with 40mm diameter samplers only

Ancillaries Cleaning brushes - click for details
  Tips - click for details
  Storage Cases - click for details


* Don’t forget to order a Sample Collecting Bottle
** Aluminium samplers are not recommended for GMP applications - use stainless steel
