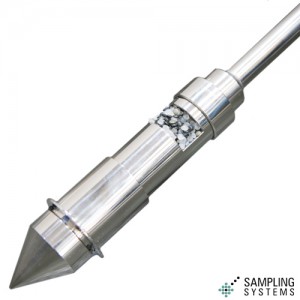

Sleeve Sampler

Sleeve Sampler

Large Volume Sampling From Depth

The Sleeve Sampler is ideal for sampling large volumes at great depths. Various sized chambers can be quickly attached to the same handle to allow different sample volumes to be taken.

Type: Single Point

Material: 316 stainless steel, bright finish

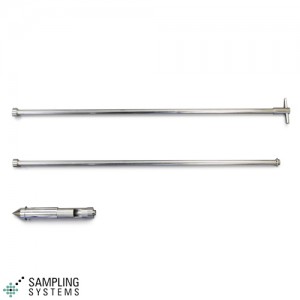

Heavy Duty Handle
The heavy duty handle and extension rods have been designed to be extremely strong and robust to allow samples to be taken from depths up to 6m (after about 6m the sampler gets heavy).

Sleeve Sampler
Operation:

1. Select the correct chamber for the volume to be sampled and screw it onto the handle. Insert the sampler into the product.
2. At the required depth pull up the sampler slightly. This will force the sleeve down so that product can fall into the sample chamber.
3. Remove sampler.
4. To empty sampler either pour sample out of filling port or unscrew the tip.

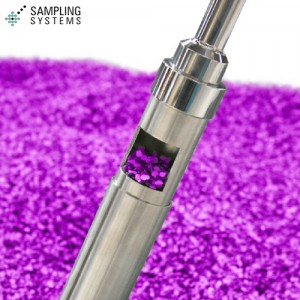

The Sleeve Sampler is suitable for taking samples of powders and granules
Sleeve Sampler

Sleeve Sampler

Handles & Extension Rods   Sample Chambers
Part No. Description Length   Part No. Chamber Volume
1035A-1000 Heavy Duty Handle 1000mm   1035T-100 100ml
1035A-1500 Heavy Duty Handle 1500mm   1035T-150 150ml
1035E-1000 Heavy Duty Extension Rod 1000mm   1035T-200 200ml
1035E-1500 Heavy Duty Extension Rod 1500mm

Ancillaries Cleaning brushes - click for details
  Storage Cases - click for details


Operation


Operation:

1. Select the correct chamber for the volume to be sampled and screw it onto the handle. Insert the sampler into the product.
2. At the required depth pull up the sampler slightly. This will force the sleeve down so that product can fall into the sample chamber.
3. Remove sampler.
4. To empty sampler either pour sample out of filling port or unscrew the tip.
