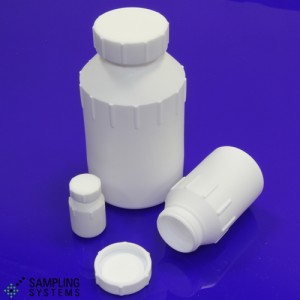

PTFE Bottle

PTFE Bottle

PTFE bottles are made from virgin PTFE which ensures that they have excellent chemical resistance. The PTFE used in the manufacture of these bottles conforms to both FDA and USP Class VI requirements.

  • Multi purpose bottle & cap
  • Crevice free interior
  • Heavy wall construction
  • Suitable for use up to 280°C (400°F)





ptfe bottle


Part No. Volume Height Diameter
A125-1 1ml 27mm 16mm
A125-5 5ml 35mm 22mm
A125-10 10ml 50mm 26mm
A125-25 25ml 61mm 33mm
A125-50 50ml 76mm 43mm
A125-100 100ml 88mm 52mm
A125-250 250ml 115mm 67mm
A125-500 500ml 150mm 80mm
A125-1000 1000ml 185mm 100mm
A125-2000 2000ml 240mm 120mm


Download Specifications sheet


A125-1______PTFE Bottle 1ml - specification sheet (coming soon)

A125-5______PTFE Bottle 5ml - specification sheet (coming soon)

A125-10_____PTFE Bottle 10ml - specification sheet (coming soon)

A125-25_____PTFE Bottle 25ml - specification sheet (coming soon)

A125-50_____PTFE Bottle 50ml - specification sheet

A125-100____PTFE Bottle 100ml - specification sheet

A125-250____PTFE Bottle 250ml - specification sheet (Coming soon)

A125-500____PTFE Bottle 500ml - specification sheet

A125-1000___PTFE Bottle 1000ml - specification sheet (coming soon)

A125-2000___PTFE Bottle 2000ml - specification sheet
