Pocket Sampler:

Multilevel Zone Sampler for Powders

The highly popular Pocket Sampler is suitable for taking discrete, zone samples from free flowing powders and granules. The sampler is available in a range of sizes and designs. Its GMP design means it can be stripped and cleaned very quickly.

This popular all layer sampler is available from stock for immediate delivery worldwide.

Features:
• Multilevel
• All Stainless Steel or Stainless Steel outer with PTFE inner core.
• Free Flowing Powders

Operation

1. Close the sampler and then push it into the product
2. Rotate the inner rod to open the sampler
3. Wait a few seconds for the product to flow into the pockets.
4. Rotate the inner rod to close the sampler and then pull the sampler out of the product



Special short or very long samplers are available on request - please ask for details

pocket sampler takes multi-level samples
Pocket Sampler



Bayonet Handle Sealing Sleeves Tips
  • Allows simple operation
  • Quick disconnect system so sampler can be dismantled in seconds
  • Robust design

    (Bayonet handle is available on the 1220A and 1220B models)

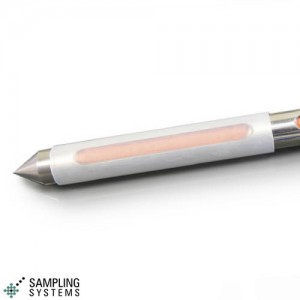

  • Enables one pocket to be emptied at a time
  • Simply clip on to cover
  • Easy to remove
  • Samplers are supplied with pointed tips as standard
  • Rounded tips or extra long pointed tips are available as an option

Photo below: shows standard and rounded tips

Pocket Sampler
Part No. Outer Tube Inner Rod Outer Diameter No of pockets Volume of each pocket Sampler Length
1220A-600 316ss PTFE 25mm 3 15ml 600mm
1220A-900 316ss PTFE 25mm 3 20ml 900mm
1220A-1500 316ss PTFE 25mm 5 20ml 1550mm

1220B-300 316ss 316ss 25mm 3 10ml 380mm
1220B-600 316ss 316ss 25mm 3 15ml 600mm
1220B-900 316ss 316ss 25mm 3 20ml 900mm
1220B-1500 316ss 316ss 25mm 5 20ml 1550mm

1220J-900 316ss 316ss 40mm 3 90ml 1040mm
1220J-1500 316ss 316ss 40mm 4 90ml 1570mm
1220J-2000 316ss 316ss 40mm 4 90ml 2050mm

Accessories
8005A-01 Sealing Sleeve Set - Covers pockets - set of 3 sleeves (25mm diameter - suitable for 1220A and 1220B)
8005A-02 Sealing Sleeve Set - Covers pockets - set of 3 sleeves (40mm diameter - suitable for 1220J)

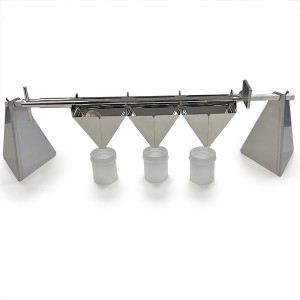

1220X-600 Emptying rack for 600mm sampler (25mm diameter - suitable for 1220A and 1220B)
1220X-900 Emptying rack for 900mm sampler (25mm diameter - suitable for 1220A and 1220B)
1220X-1500 Emptying rack for 1500mm sampler (25mm diameter - suitable for 1220A and 1220B)
1220Y-900 Emptying rack for 1000mm sampler (40mm diameter - suitable for 1220J-900)
1220Y-1500 Emptying rack for 1500mm sampler (40mm diameter - suitable for 1220J-1500)
1220Y-2000 Emptying rack for 2000mm sampler (40mm diameter - suitable for 1220J-2000)
LUG-1 Earthing connection point. See page 80 for more info
TIP-25R Round tip. (Sampler supplied with pointed tip). For 25mm diameter samplers only - 1220A and 1220B
TIP-25P Extra long Pointed tip - For 25mm diameter samplers only - 1220A and 1220B
TIP-40R Round tip. (Sampler supplied with pointed tip). For 40mm diameter samplers only - 1220J
TIP-40P Extra long Pointed tip. (Sampler supplied with pointed tip). For 40mm diameter samplers only - 1220J

Ancillaries Cleaning brushes - click for details
  Tips - click for details
  Storage Cases - click for details



Download Instructions


Operation

1. Insert the sampler into the product, ensure that the tip is inside the sampler body.
2. At the required depth rotate the handle to expose the collecting pockets, the product will now flow into the collecting pockets.
3. Rotate the handle to close the pockets
4. Withdraw sampler.

Special short or very long samplers are available on request - please ask for details
