Multi Thief
Multi Thief
Multilevel Powder Sampler with variable Sample Volumes

The Multi Thief is ideal for taking multiple bulk samples from free flowing powders and granules. The high quality sampler is manufactured to the highest standard in 316 stainless steel.

The versatile design enables the sample volume to be quickly and easily changed by changing the removable sample cells.

Type: Multilevel

Material: 316 stainless steel

  • 316 stainless steel construction
  • Variable sample volumes 5 to 60ml
  • Range of sampler lengths
  • Suitable for free flowing powders and granules


Operation

1. Select the correct volume Inserts and fit them into the Inner Rod.
2. Slide the assembled Inner Rod into the Outer Sleeve at the lowest sampling level
3. Insert the sampler into the product, turn the handle to expose the sampling cells to the product.
4. Turn the handle so no Sampling Inserts are exposed then remove the sampler from the product.
5. Remove the Inner Rod from the Outer Sleeve, the individual Sampling Inserts can then be easily removed for analysis.

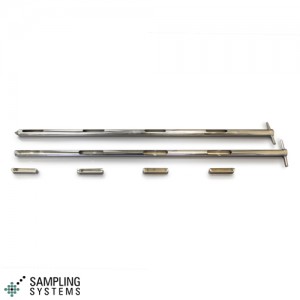

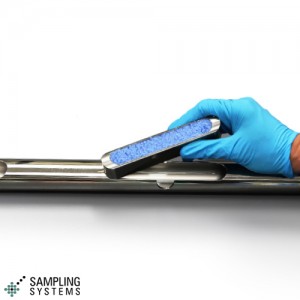

The Multi Thief sampler has removeable inserts which allow the sampler to take different sample volumes


The Multi Thief is made from 316 stainless steel


Part No Sampler Length Diameter No. of Inserts Required Material of Construction

1290K-1000 1000mm 40mm 3 316 stainless steel
1290K-1500 1500mm 40mm 4 316 stainless steel
1290K-2000 2000mm 40mm 4 316 stainless steel

Sample Inserts
Inserts are available any volume from 5ml up to 60ml
1290W-XX Sample Insert where XX = sample volume in ml e.g. 1290W-25 = insert with 25ml sample volume

Ancillaries Cleaning brushes - click for details
  Tips - click for details
  Storage Cases - click for details
