Liquid Master
Liquid Master

The Liquid Master is ideal for taking samples from low and medium viscosity liquids. It is available in a range of lengths and diameters to give a range of sample volumes.

The Liquid Master is easy to use and is designed to be quickly stripped down for cleaning.

Type: Single Point & Cross Sectional Sampling

Material: 316 stainless steel, Food grade PTFE or standard PP


Operation

Technique 1 - Point Sampling
Insert the sampler. Press the push button to take sample. Remove the sampler.

Technique 2 - Cross Sectional
Press the Push Button and then slowly insert the sampler into the product. As the sampler is pushed in a cross sectional sample is taken. Release the push button at the required depth to stop any more liquid from entering the Sampler. Remove the sampler.

Note. To take a large sample the sampler needs to be inserted deep into the product.

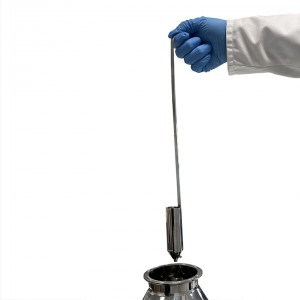

The Liquid Master is ideal for sampling low viscosity liquids

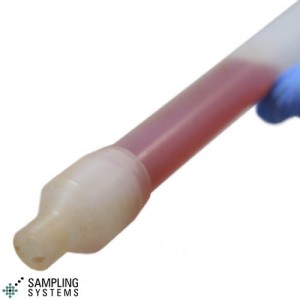

The Liquid Master is suitable for sampling pharmaceutical and food products

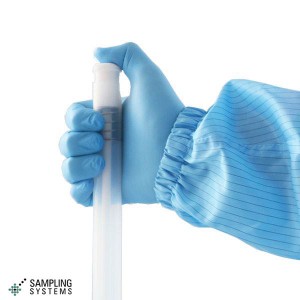

Operation

Push Button
Press to take sample
Quick & easy to use

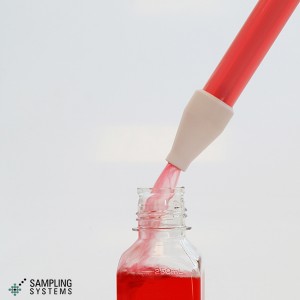

Liquid Master samplers are available in a range of different materials to suit different types of liquids
Part No. Product Contact Material Length Maximum Sample Volume Diameter
5035J-1000 PTFE/MFA 1000mm 500ml* 35mm
5035J-1500 PTFE/MFA 1500mm 1000ml* 35mm
5035J-2000 PTFE/MFA 2000mm 1500ml* 35mm

5035S-600 316 stainless steel 600mm 150ml** 25mm
5035S-1000 316 stainless steel 1000mm 270ml** 25mm
5035S-1500 316 stainless steel 1500mm 420ml** 25mm

5035T-600 PTFE/FEP 600mm 150ml** 25mm
5035T-1000 PTFE/FEP 1000mm 270ml** 25mm
5035T-2000 PTFE/FEP 2000mm 420ml** 25mm

5035P-600 Polypropylene 600mm 150ml** 25mm
5035P-1000 Polypropylene 1000mm 270ml** 25mm
5035P-2000 Polypropylene 2000mm 420ml** 25mm

Ancillaries Cleaning brushes - click for details
  Storage Cases - click for details

*A 5ml sample will be taken for every 10mm the Liquid Master is inserted into the product
**A 3ml sample will be taken for every 10mm the Liquid Master is inserted into the product


Operation


Operation

Technique 1 - Point Sampling
Insert the sampler. Press the push button to take sample. Remove the sampler.

Technique 2 - Cross Sectional
Press the Push Button and then slowly insert the sampler into the product. As the sampler is pushed in a cross sectional sample is taken. Release the push button at the required depth to stop any more liquid from entering the Sampler. Remove the sampler.

NB. To take a large sample the sampler needs to be inserted deep into the product.
