SteriWare® Disposable Slot Sampler
Disposable Slot Sampler

Cross Sectional Multilevel Sampler

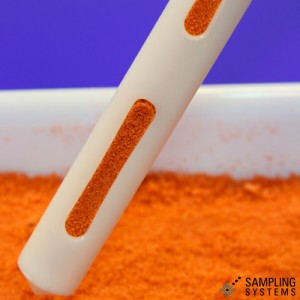

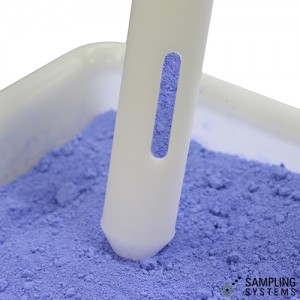

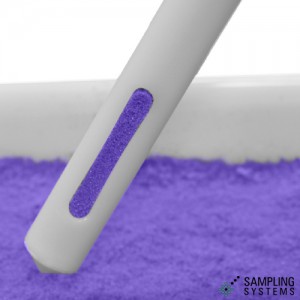

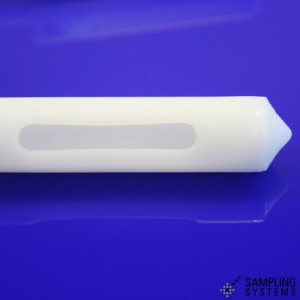

The sterile, disposable Slot Sampler is ideal for taking a multilevel, cross sectional sample from powders and granules.

The disposable Slot Sampler takes a single composite from the top, middle and bottom of your powder bed.

 Assembled & Packed in a Cleanroom
 Individually Bagged
 Made from FDA and EU conforming HDPE
 BSE/TSE Free
 Full Batch Traceability
 Suitable for use in ATEX zones 0, 1 and 2
 Available as gamma irradiated sterile (SAL 10-6)

The SteriWare Slot Sampler is available sterile or non-sterile.

Operation

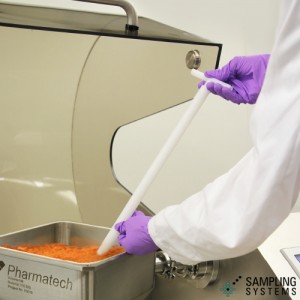

The Disposable Slot Sampler is quick and easy to use:

1. Push the sampler into the product
2. Rotate handle to open up slots
3. After leaving the sampler for several seconds to allow powder to enter, rotate handle to close the sampler.
4. Remove sampler
5. Slide the inner rod out of the outer tube
6. Deposit the sample into a suitable container

sterile, disposable slot sampler
Single use, sterile,  dispoable Slot Sampler sampling free flowing granules

The disposable Slot Sampler is ideal for taking a cross sectional sample
Why Use a Disposable Sampler?
  • Cross-contamination risk is eliminated - the device can be used straight from the bag
  • No cleaning is required before or after sampling
  • No cleaning validation (this is very expensive to set up and run)
  • Manufactured in a class 100,000 cleanroom environment
  • Peace of mind
  • Suitable for all industries (pharmaceutical, food, chemical, cosmetic, biotechnology etc.)
  • Financial
  • Save time and money (it will cost more to clean a reusable sampler than to buy a disposable sampler)

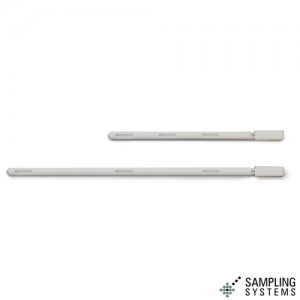

Part No Pre-Sterilised Overall length Nominal Sample Volume Overall Diameter Material Quantity per Box
8073H-500 No 620mm 100ml
25mm HDPE 20
8073H-500S Yes 620mm 100ml 25mm HDPE 20
8073H-1000 No 970mm 170ml 25mm HDPE 20
8073H-1000S Yes 970mm 170ml 25mm HDPE 20
8073J-1000 No 1000mm 500ml 40mm HDPE 20
8073J-1000S Yes 1000mm 500ml 40mm HDPE 20
Manufactured from 100% virgin HDPE


Download Instructions


Operation


The Disposable Slot Sampler is quick and easy to use:

1. Push the sampler into the product
2. Rotate handle to open up slots
3. After leaving the sampler for several seconds to allow powder to enter, rotate handle to close the sampler.
4. Remove sampler
5. Slide the inner rod out of the outer tube
6. Deposit the sample into a suitable container
