Single point sampler for use with cohesive (sticky, non flowing) powders

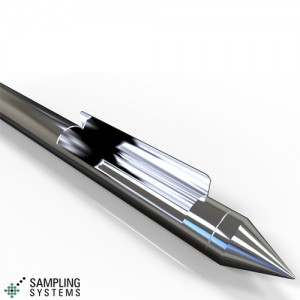

Our robust  Cohesive Powder Sampler is able to take a sample from a known point within the product.. A scraper is fully welded to the outside of the pocket. This scraper is used to push the powder into the sampler by rotating it.

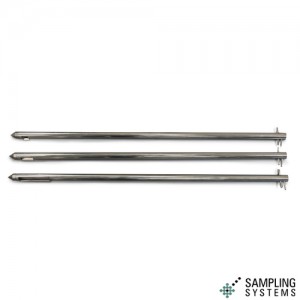

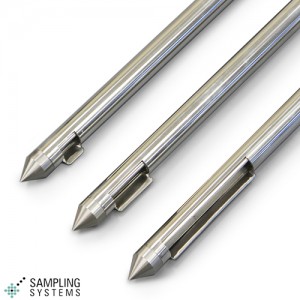

The cohesive sampler is available with three standard tip sizes. Special lengths and volumes available on request.

Type: Single Point

Material: 316 stainless steel




Operation

1. Insert sampler into product ensuring that the sample collecting chamber is in the closed position
2. At the correct sampling depth, turn the inner tube to expose the sample collecting chamber
3. Rotate the entire sampler through 360º. The scraper collects product and guides it into the sample collecting chamber.
4. Turn the inner tube to close the sample collecting chamber
5. Remove sampler
6. Pull out the inner tube and discharge the sample

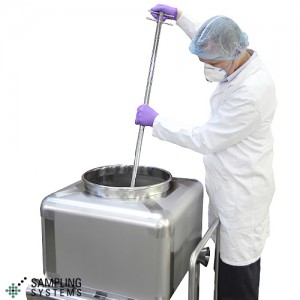

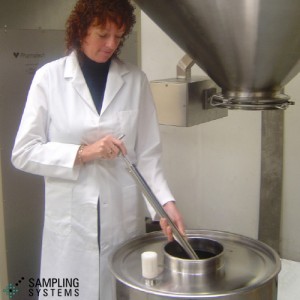

The Cohesive Sampler is ideal for taking samples from sticky powders
The Cohesive Sampler is made from 316 stainless steel

Part No. Sample Volume Sampler Length Sampler Diameter
2015A-05 5 ml 1000 ml 25 ml
2015A-10 10 ml 1000 ml 25 ml
2015A-25 25 ml 1000 ml 25 ml

TIP-25R Round tip (sampler supplied as standard with pointed tip)
LUG-1 Weld earthing lug on to sampler

Ancillaries Cleaning brushes - click for details
  Tips - click for details
  Storage Cases - click for details


Download Instructions


Operation

1. Insert sampler into product ensuring that the sample collecting chamber is in the closed position
2. At the correct sampling depth, turn the inner tube to expose the sample collecting chamber
3. Rotate the entire sampler through 360º. The scraper collects product and guides it into the sample collecting chamber.
4. Turn the inner tube to close the sample collecting chamber
5. Remove sampler
6. Pull out the inner tube and discharge the sample
