Cohesive Pocket Sampler
Cohesive Pocket Sampler

Zone sampling of Cohesive powders

The Cohesive Pocket Sampler has been specially adapted from our very popular Pocket Sampler to enable the taking of samples of damp and cohesive powders.

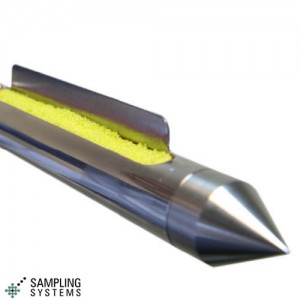

Scrapers have been added to push the sticky powder into the sample pockets. Scrapers are fully welded to give a hygienic, GMP correct sampler.  This all layer sampler is available in other sizes and lengths on request.

Type: Multilevel (discrete samples)

Material: 316 Stainless steel construction

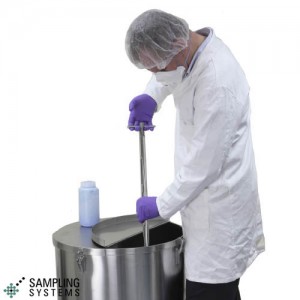

Operation

1. Insert the sampler into the product

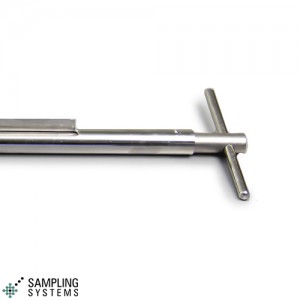

2. At the required depth rotate handle to expose the collecting pockets.
3. Rotate the sampler through 360° so the product is pushed into the collecting pockets
4. Rotate handle to close pockets and remove sampler.

cohesive pocket sampler

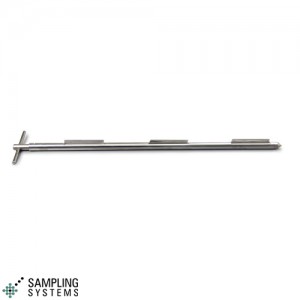

The cohesive pocket sampler is made from 316 stainless steel

Cohesive Pocket Sampler


Part No Sampler Length Number of Pockets Nominal Volume of each Pocket Material Diameter*
2220B-600 600 mm 3 15 ml 316 stainless steel 25 mm
2220B-900 900 mm 3 20 ml 316 stainless steel 25 mm
2220B-1500 1500 mm 5 20 ml 316 stainless steel 25 mm

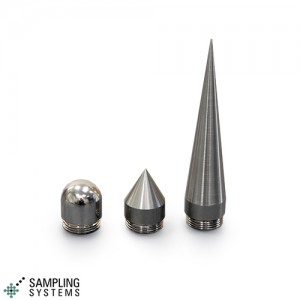

TIP-25R Rounded tip (sampler supplied with pointed tip)
LUG-1 Weld Earthing lug on to sampler

Ancillaries Cleaning brushes - click for details
  Tips - click for details
  Storage Cases - click for details

*Diameter does not include scrapers. Scrapers are approximately 10 mm high


Download Instructions


Operation

1. Insert the sampler into the product
2. At the required depth rotate handle to expose the collecting pockets.
3. Rotate the sampler through 360° so the product is pushed into the collecting pockets
4. Rotate handle to close pockets and remove sampler.
